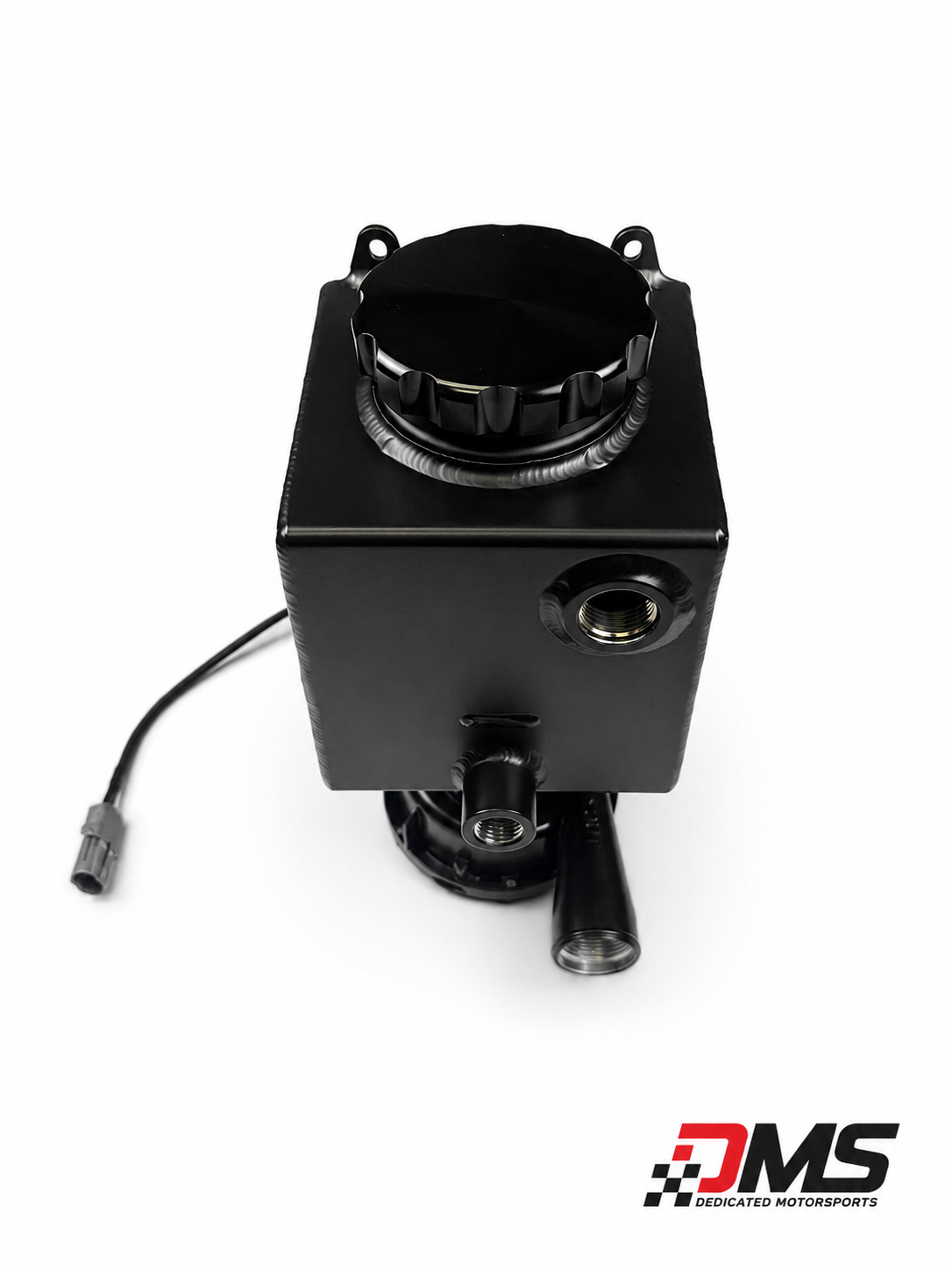

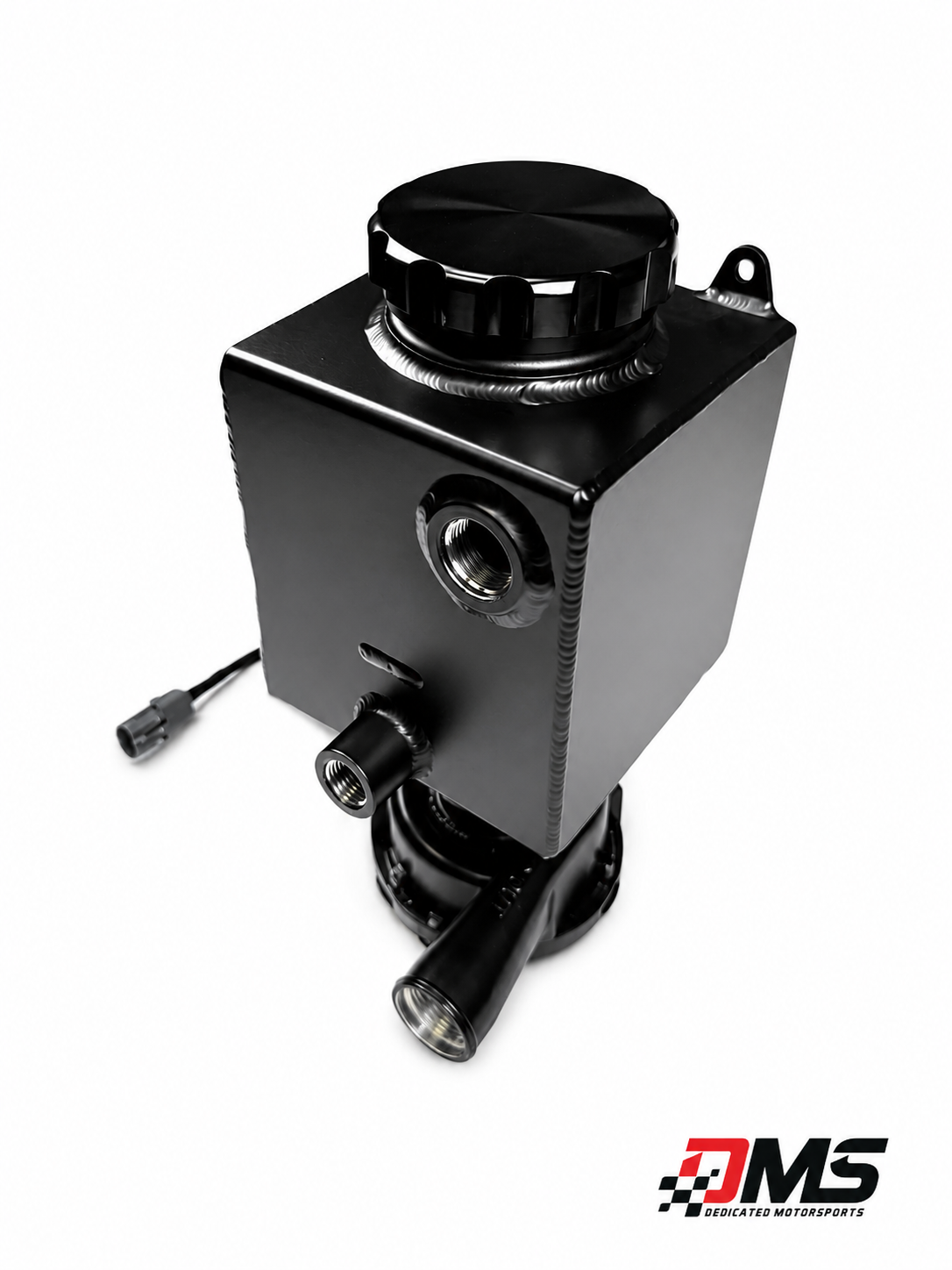

Universal 1 Gallon Supercharger Coolant (Ice) Tank for Davies Craig Pump
This 1-gallon coolant tank is the perfect addition to any air-to-water intercooler system. While it’s commonly used in supercharged applications, it also works great with turbo setups running an air-to-water intercooler.
Inside the tank, you’ll find a built-in ice screen designed to protect the pump impeller when icing down the system at the track or on the dyno. The inlet/outlet fittings are engineered with serviceability in mind, if a fitting is ever damaged, it can be easily replaced with another ORB fitting without the need to cut or reweld the tank. Each tank is made in house out of laser cut .125" thick 5052 aluminum, CNC bent and tig welded by our talented fabricators.

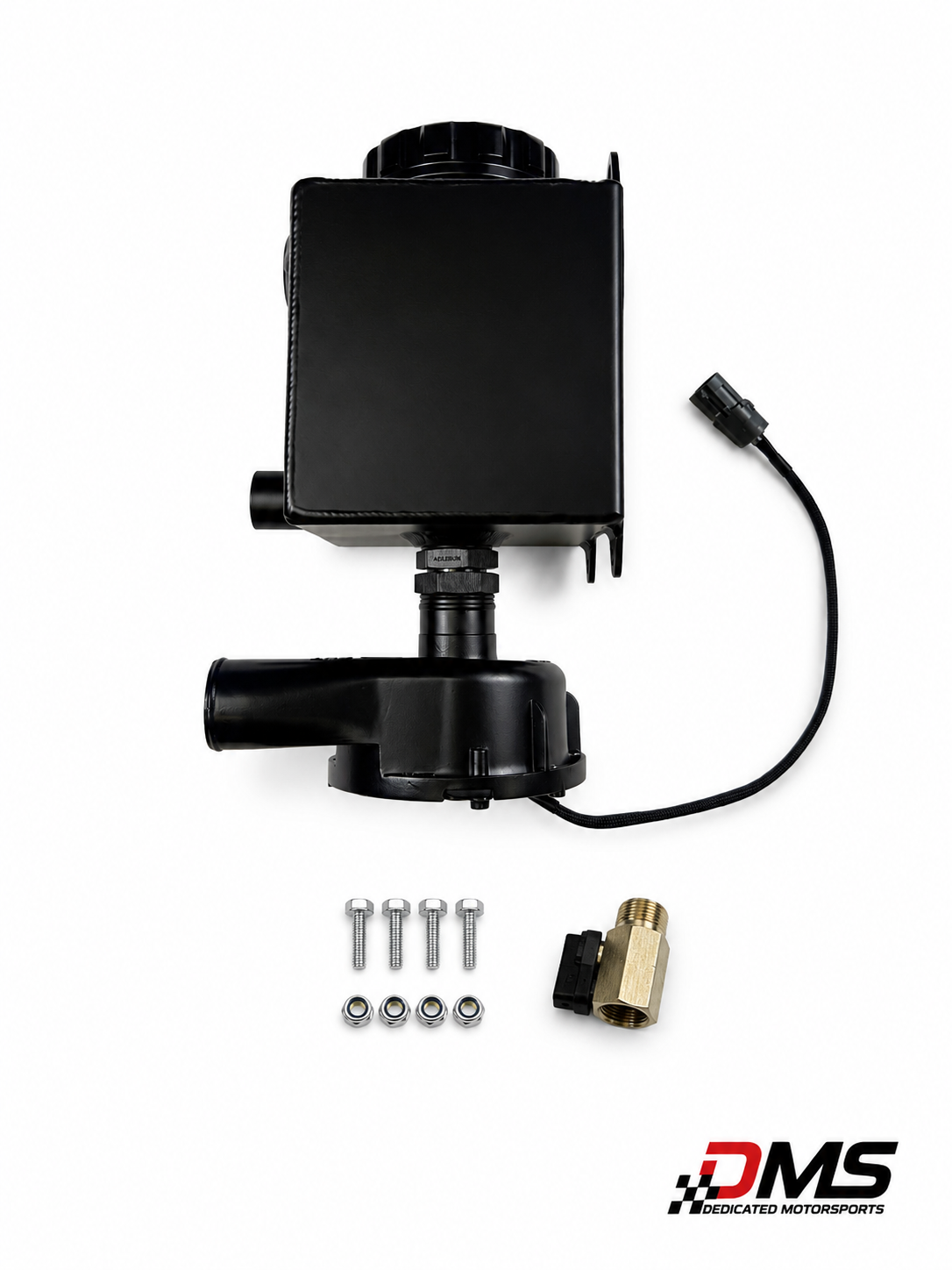

Designed around the reliable and efficient Davies Craig EWP150 coolant pump, this setup keeps packaging compact while maintaining excellent performance. We’ve updated the bottom port to a -16 ORB fitting so we can utilize a union fitting specifically for Davies Craig pumps, allowing the pump to be clocked in the direction that best fits your setup. Prefer a remote-mounted pump? Simply install a 12AN to -16 ORB fitting in the bottom port and mount the pump remotely.
Body Dims 6"X6"X6"

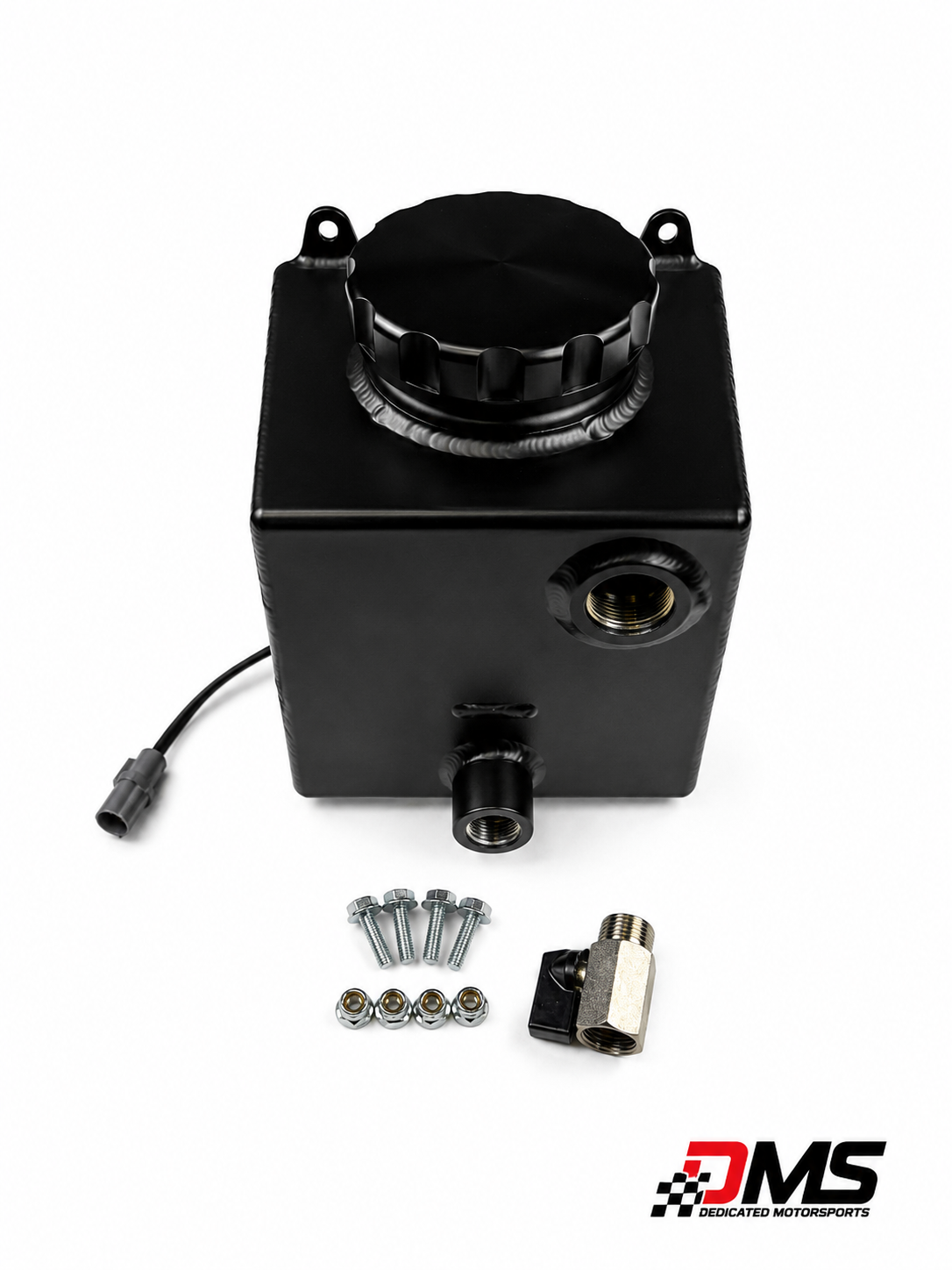

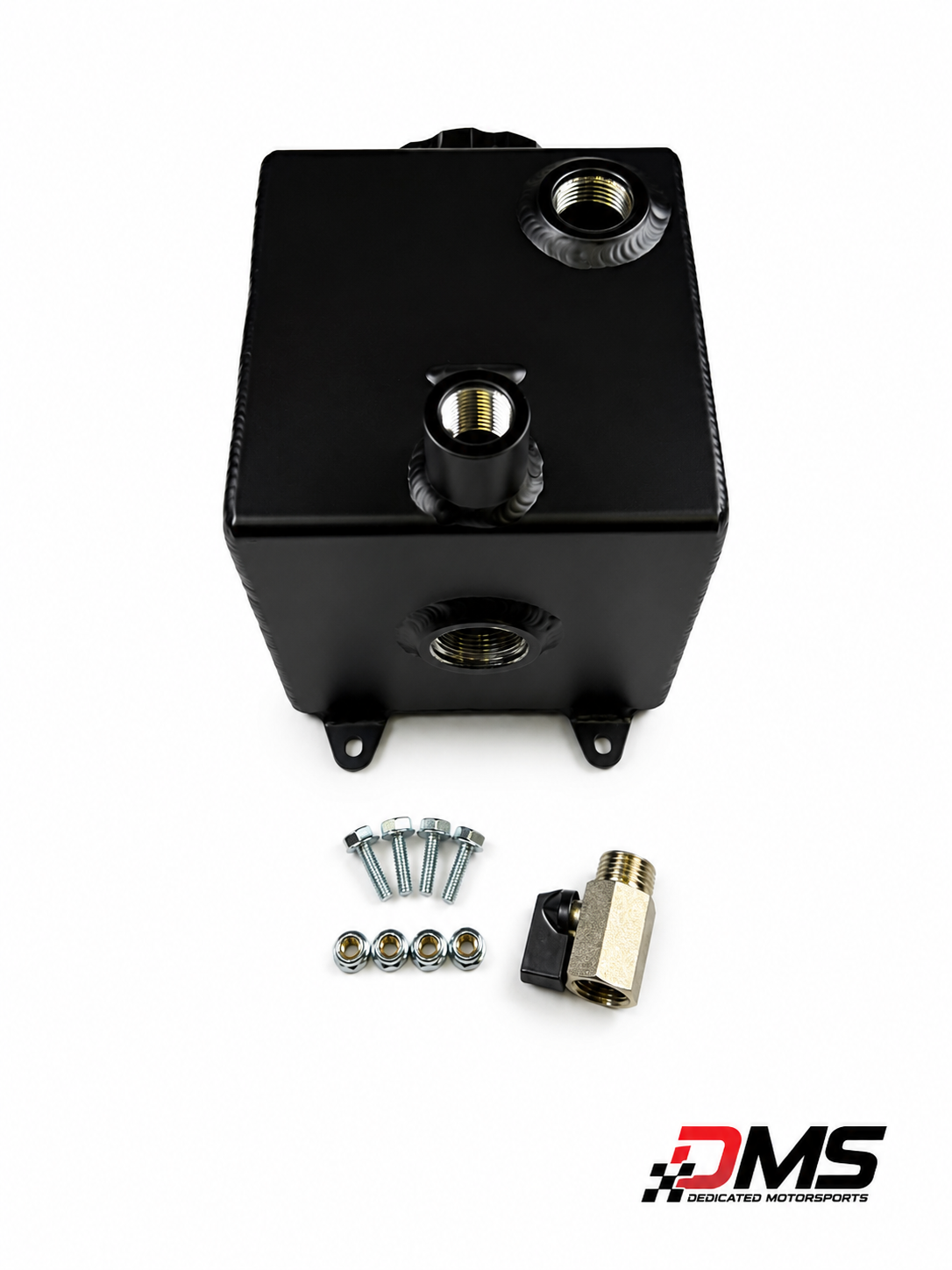

Included:
- 1 Gallon Tank
- Davies Craig EWP Coolant Pump (If option is selected)
- Billet 3" Filler Cap
- (x2) -12an ORB Fittings (If option is selected)
- 1/2 NPT Drain Valve
- Hardware for mounting
Davies Craig Coolant Pump Specs:
- Aluminum Body
- Max Flow Rate 42.8 G/Min
- Max Current Draw 10 amps
- Weight 2.6 lbs
