Dedicated Motorsports brings you a plug and play solution to replace the factory supercharger cooling pump. This pump will flow an impressive 11.6 gallons per minute. This makes it a perfect solution for the CTS-V, ZL1 Camaro, ZR1 Corvette or the C7 Z06's. ****Comes with a 6 inch flying lead harness**** This pump can pull over 10 AMPS you cannot run this on the factory wiring harness found on most GM cars.

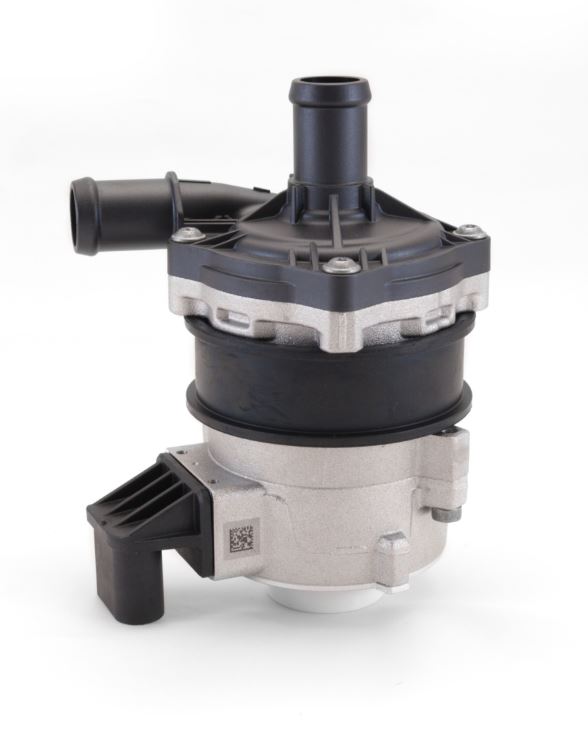

The CWA150 is basically the high pressure variant of the CWA100-3 we are also offering. The dimensions and the weight are nearly the same.
New are the freshly designed impeller and impeller housing to accommodate for the higher differential pressures.
It is suitable for various systems in electrical vehicles and anything else that profits from that higher pressure capability.
Specifications:
- Name: "Pierburg CWA150"
- Operation voltage: 9-16 volts
- Weight: approx. 1.0 kg
- Current consumption: 15A max. / (I < 100mA in standby mode)
- Nominal diff. pressure: ≥ 1.40 bar *
- Flow rate: approx. 25 l/min @ 1.40bar / 40 l/min @ 0.80bar
- Speed: approx. 6692 rpm
- Temperature range: -40°C – 80°C (water) / -40°C – 100°C (ambient)
- Protection: IP 54
- Inlet/Outlet Size 0.750"
