Universal 5 Gallon Ice Tank with Pierburg CWA400 Coolant Pump – High Flow Air-to-Water Intercooler Solution
Looking for maximum cooling performance? The Dedicated Motorsports 5 Gallon Ice Tank with integrated Pierburg CWA400 is the ideal solution for supercharged or turbocharged vehicles running an air-to-water intercooler. Whether you're mounting in the trunk or truck bed, this system is built to handle high-demand cooling with exceptional flow and reliability.
The Pierburg CWA400 is one of the highest-flowing electric coolant pumps on the market, delivering up to 220 liters per minute to keep your intake temperatures low, even under extreme conditions.
This kit includes a full hardware package and offers the option of a pre-assembled heavy-duty wiring harness or a connector kit for a custom install. Everything is designed with performance and ease of installation in mind.

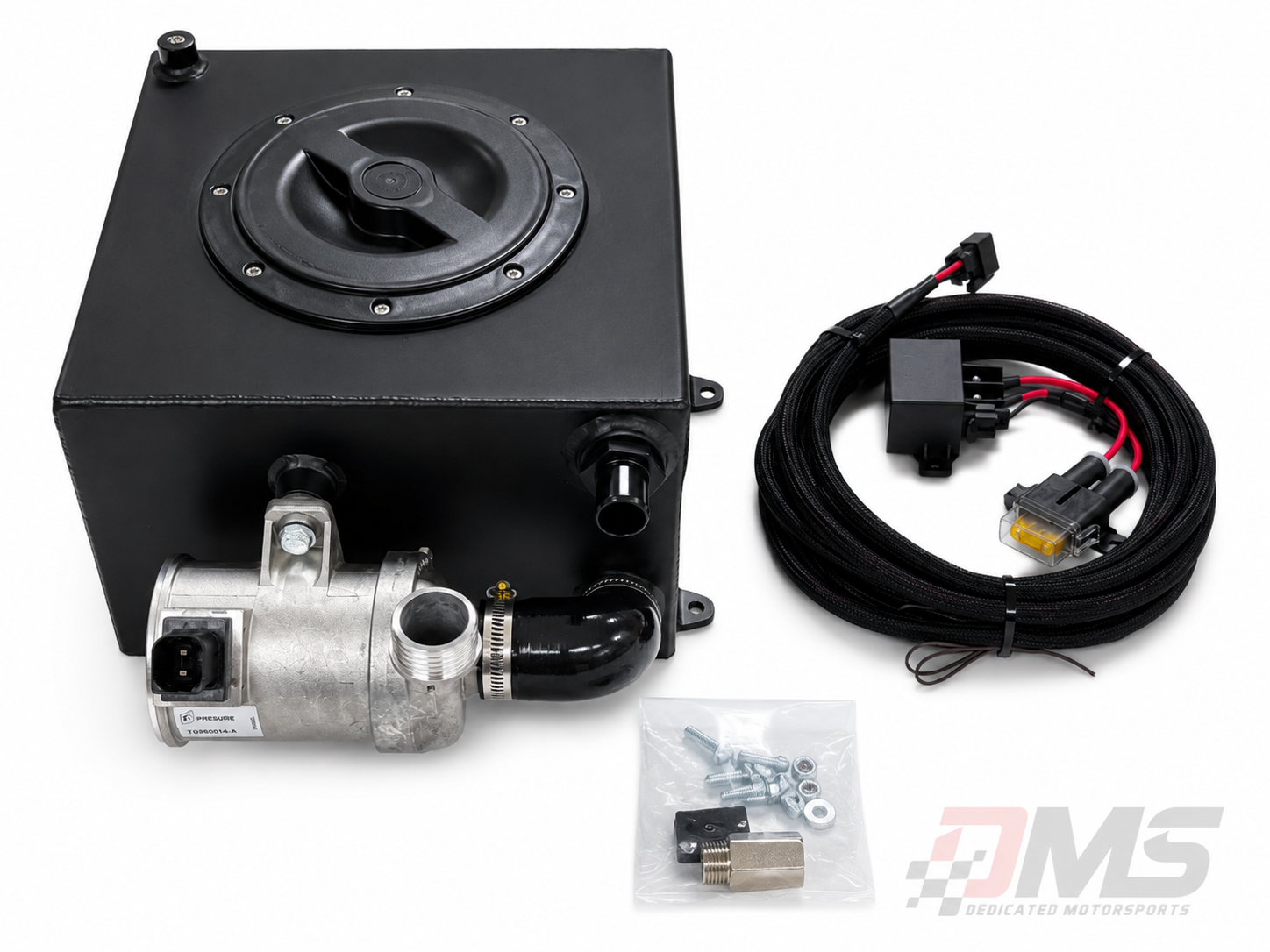

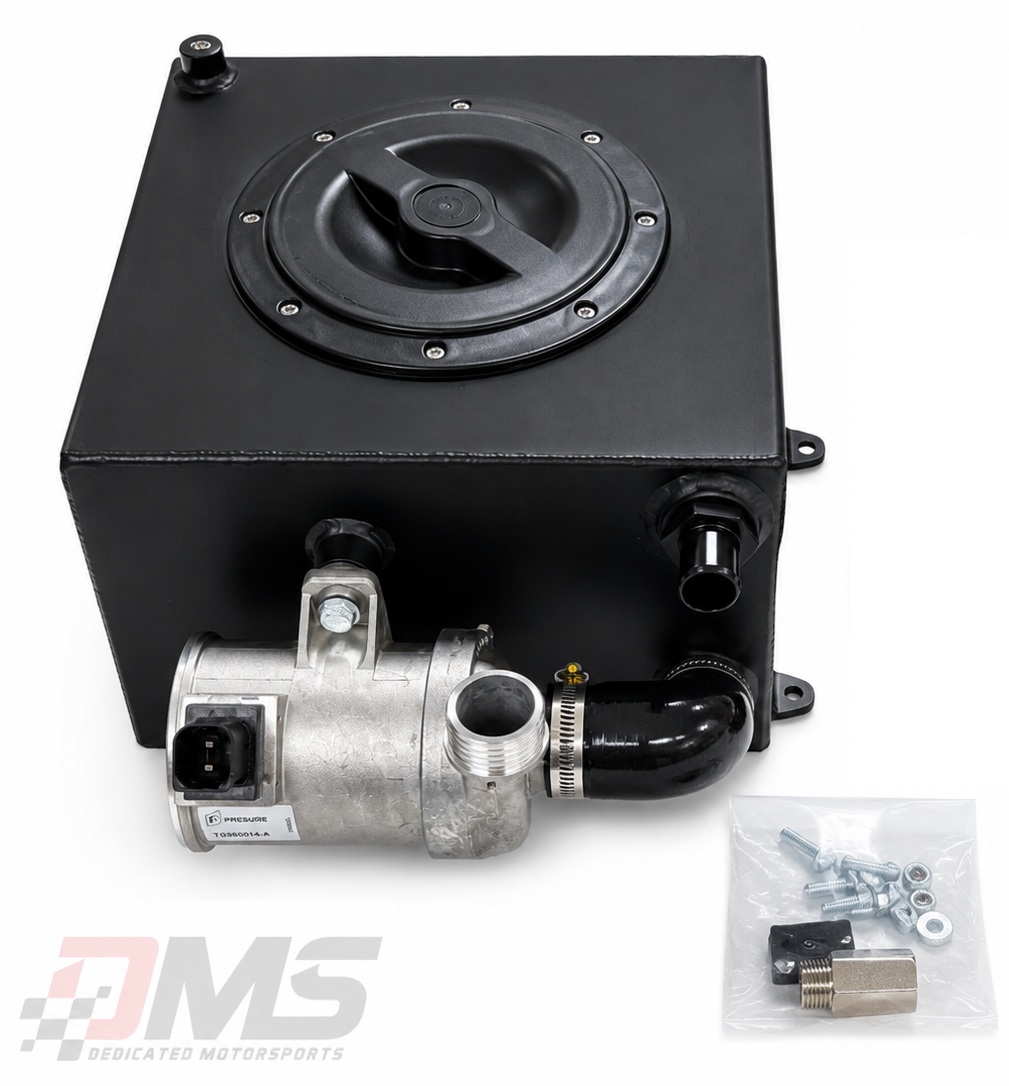

Included in the kit:
-
5 Gallon Aluminum Ice Tank
-
Pierburg CWA400 Coolant Pump (approx. 220 L/min @ 0.55 bar)
-
Pre-wired harness or connector with seals and terminals
-
6" Plastic Tank Lid
-
Silicone Inlet and Outlet Hoses
-
ORB Return Fitting
-
Billet Outlet Fitting (12AN or 16AN option)
-
½” NPT Drain Valve
-
Full Mounting Hardware
Note: Product photos may show a 90-degree outlet fitting, which is not included. The standard outlet is a 1.5" barb, but it can be tapped for 1” NPT if desired.

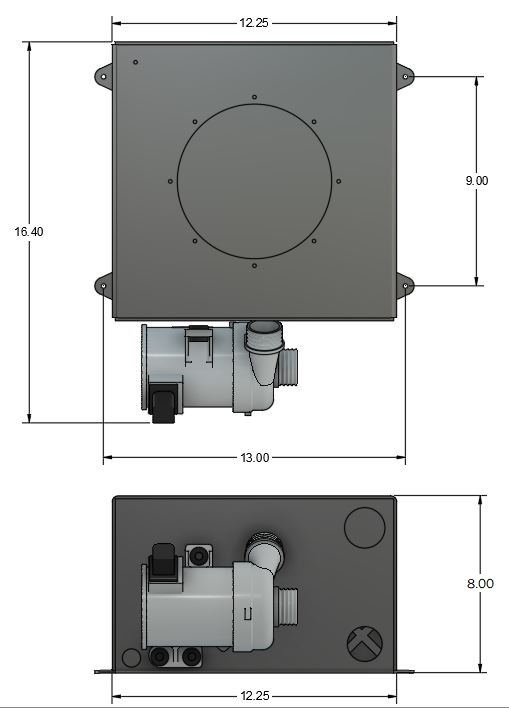

Tank Dimensions:
Please refer to the product photos for detailed measurements.
Pierburg CWA400 Pump Specifications:
-
Flow Rate: 220 L/min @ 0.55 bar
-
Current Draw: Approx. 35.5 amps
-
Speed: Approximately 5900 RPM
-
Weight: 4.7 lbs
This tank and pump combination is ideal for high-performance street builds, drag applications, and any forced-induction setup that requires serious cooling capacity. Trusted by racers and tuners across the industry.
